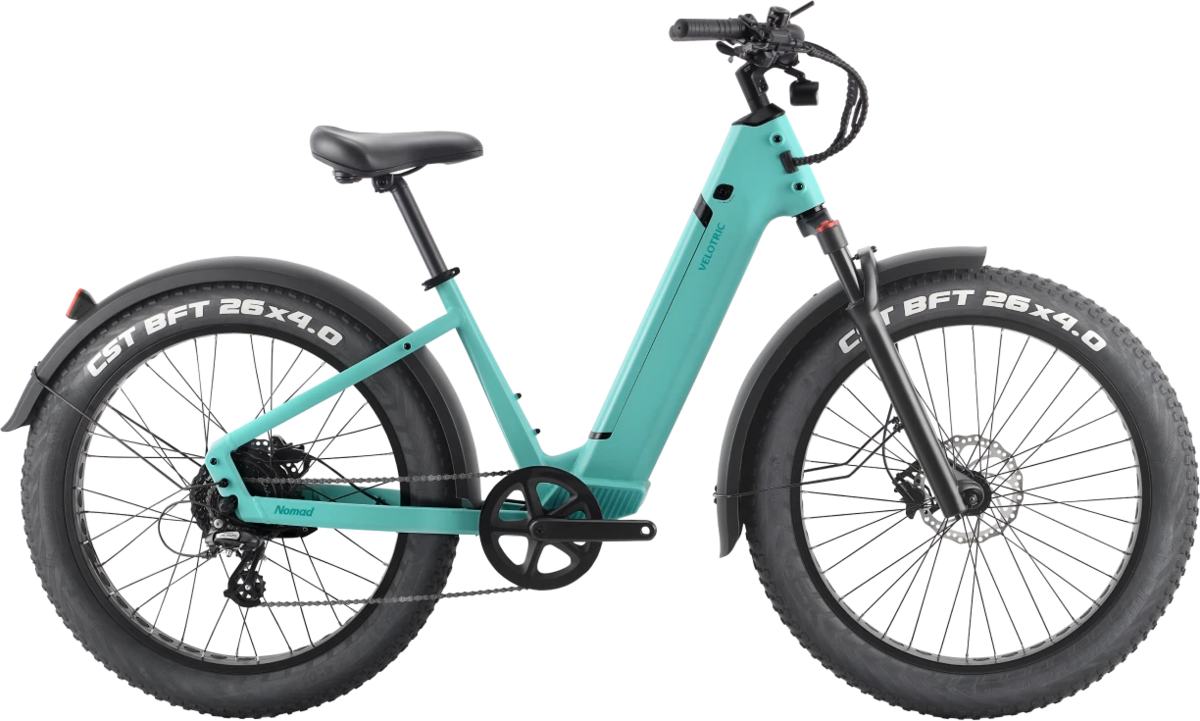

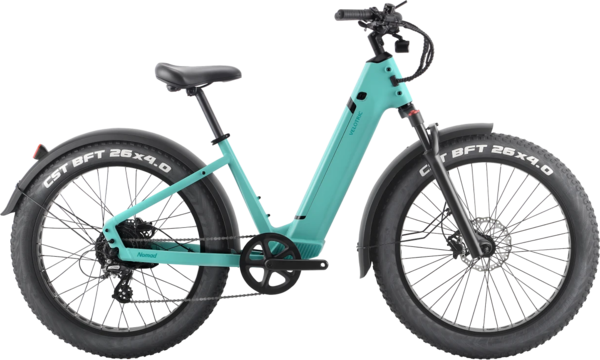

Velotric Nomad 1 Step-Thru

Velotric Nomad 1 Step-Thru
  • Color: Cyan
  • Color: Mango
  • Color: Sky Blue
  • Color: Spring
  • Color: Forest
  • Color: Indigo Gray
Color:
Size: One Size
Please select options Unavailable

Details

The powerful fat tire e-bike can conquer all road and weather conditions.

Details:

- 48V 14.4Ah, 750W Class 2 with Throttle Assist.
- Top speed 25 mph
- 5-level pedal assist, Walk mode, USB charging.
- Frame with Fully-integrated Battery Design.
- Hydraulic Disc Brakes. Shimano 8-speed.
- UL 2271 Certified Battery included.

Features:

- Go anywhere you want. Like a Nomad.
The Velotric Nomad 1 was made to carry you through any weather and across all terrains. It’s our most versatile and powerful e-bike yet, with a 750W high-performance motor (peak 1200W) and a 75Nm torque. Even at 8 degrees uphill, it’ll provide a smooth, effortless riding experience.

- Have more fun with 50% longer range.
Equipped with a 21700 48V 14.4Ah removable battery made by Samsung, the Velotric Nomad 1 features a 50% longer range compared to similar bikes in the market. Up to 55 miles on a single charge.

- 7 colors, 2 frames.
Choose your stylish ride. The Velotric Nomad 1 is one of the most stylish fat tire bikes out there (if we do say so ourselves!) We’re proud to offer it in 7 unique colors and 2 frames so that you can choose your look!

- Easy to hop on & off. Accessible to all riders.
Reinforced aluminum step-thru & high-step frame so you can easily hop on & off, even with items stored on the rear rack. Nomad 1 fits riders from 5'1 to 6'9.

- Ride with peace of mind.
Safety is our most important design philosophy. Not only did we certify both our battery and bike with UL, but we rigorously tested our bikes over 150,000 times under the toughest conditions so that you never have to worry about our quality.

The Nomad 1 is equipped with a rear light, IPX6 grade waterproof, and hydraulic-disc brakes offering riders extra safety in any conditions.

- Our most versatile adventure e-bike ever.
The Nomad 1 can easily conquer any road. The front fork gives you a smooth riding experience in parks, cities, suburbs, or anywhere else you ride.

Geometry

Sizes:
Frame SizeOne Size
Head Tube Angle: 68°
Seat Tube Angle: 70°
Reach / Stack: 380/680mm
Rider Heights: 5'1'-6'4''
Rear Center: 510mm
Minimum seat height: 817mm
Maximum seat height: 1020mm
Handlebar height: 1080mm
Total length: 1915mm
Seat tube length: 435mm
Standover height: 420mm
Wheelbase: 1140mm
Sizes:
Frame SizeRider Height (in)
One Size 5'1" - 6'4"

Specs

Frame Aluminum alloy, fully integrated & lockable down tube battery, internal cable routing, front and rear fenders, quick release seatpost clamp
Fork Hydraulic suspension with 80mm travel, with Lock-out
Rims Aluminum alloy, 36H
Tires 26x4.0”, puncture-resistant liner
Crankset Aluminum alloy, 170mm
Chainrings 46T
Shifters Shimano SL-M315, 8-Speed, thumb shifter
Rear Derailleur Shimano RD-M310, 8-speed
Cassette/Freewheel 8-Speed, 13-34T
Chain KMC-Z8
Brakes Hydraulic disc brakes
Rotors 180mm front and rear
Brake Levers Aluminum alloy, with adjustable reach and power cutoff switch
Handlebars Aluminum alloy, 31.8mm, 700mm wide
Tape/Grips Durable ergonomic Grips
Stem Velotric customized, 10-Degree rise
Seatpost Aluminum alloy, 350mm x 30.4mm, quick release clamp
Saddle Comfort ergonomic seat, 220mm wide
Pedals 9/16’’ Alloy platform with reflectors
Accessories & Extras High output integrated LED headlight, adjustable angle Heavy-duty aluminum kickstand with wide foot
Battery 48V, 691Wh, UL 2271 Recognized
Controller/Display 3.5” Backlit LCD display with speed, trip, battery, assist level and more
Charger 48V, 3.0A, operates on 100V-240V AC, 5-6 hr charging

* Subject to change without notice.

Part Numbers

Option UPC MPN
Cyan / One Size 6976061500145 VD030004D
Mango / One Size 6976061500152 VD030005D
Sky Blue / One Size 6976061500169 VD030006D
Spring / One Size 6976061500176 VD030007C
Forest / One Size 6976061500299 VD030008D
Indigo Gray / One Size 6976061500282 VD030002D
